Smart Grid Solutions: Smart Meter Design and Production

KFPCBA-OEM/ODM SOLUTION & DESIGN CASE

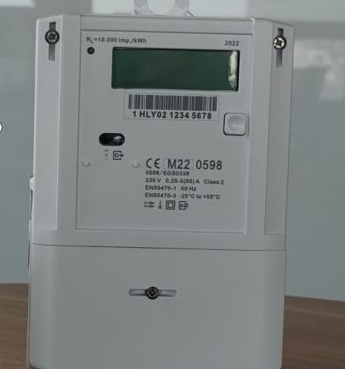

1.Single Phase Smart Electric Meter

Client:

Client is a certified high technology company that designs, develops and manufactures smart grid solutions, energy efficient power generation and distribution solutions.

Objective:

PCB + PCBA solution for Single Phase Smart Electric Meter.

Solution:

Redesign and production of the PCB Board according to client’s request.

chips selection and replacement.

Time Saver

Achievements:

Reduced the cost of PCB & PCBA by 20%.

Sucessfully help client solve the global chip shortage problem by redesign and cross-platform TI’s Chips to YAGEO.

Successfully meet the due date and release the product on time.

Fast turnaround time, completed PCB design and deliver 10 pcs samples to clients in 30days.

2. Single Phase Smart Electric Meter

Client:

Client is a certified high technology company that designs, develops and manufactures smart grid solutions, energy efficient power generation and distribution solutions.

Objective:

Design & Production for Single Phase Smart Electric Meter.

Solution:

Design and production of PCB Board.

Selection and replacement of domestic chips.

Molding & Plastic Injection.

Finished Product Assembly.

Inspection Testing and Certification performance.

Achievements:

Reduced total production cost by 15%.

Sucessfully help client solve the global chip shortage problem by redesign and cross-platform TI chips to domestic chips.

Successfully meet the due date and release the product on time.

Meet all US and European certification requirements. The products have passed MID B+D, DLMS/COSEM, EN 50470 EC-TYPE, UL and CE certifications.

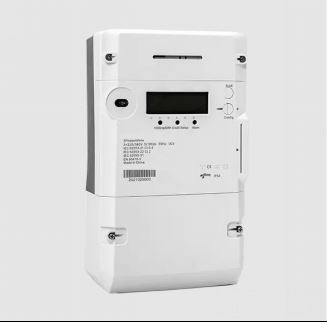

3.Three Phase Smart Electric Meter

Client:

Client is a certified high technology company that designs, develops and manufactures smart grid solutions, energy efficient power generation and distribution solutions.

Objective:

Design & Production for Three Phase Smart Electric Meter.

Solution:

Design and production of PCB Board.

Selection and replacement of domestic chips.

Molding & Plastic Injection.

Finished Product Assembly.

Inspection Testing and Certification performance.

Achievements:

Reduced total production cost by 15%.

Sucessfully help client solve the global chip shortage problem by redesign and cross-platform Microchip’s chips to domestic chips.

Successfully meet the due date and release the product on time.

Meet all US and European certification requirements. The products have passed MID B+D, DLMS/COSEM, EN 50470 EC-TYPE, UL and CE certifications.

Moreover, if you’re interested in learning more, contact us!
