QFP vs QFN: (PCB)A Comparison of Integrated Circuit Surface-Mount Packages

Release date:2022-06-30 12:37:39 Number of views:0

The surface-mount packages for integrated circuits mounted on PCBs come in different types. However, the most popular ones are QFP vs QFN. The two have several varieties, but their issues and PCB assembly processes are similar.

If you have to mount such devices to your circuit board, it is vital to understand what they are and how to assemble them. We have covered these topics in detail below, so take a look!


       Contents [hide]

  • QFP vs. QFN: QFN Package

  • QFN Variations

  • Advantages of QFN Packages

  • QFN Issues

  • QFN Footprint Design

  • QFN Assembly

  • QFN Soldering

  • QFP vs. QFN: QFP Packages

  • QFP Package Variations

  • Issues to Consider When Dealing With QFPs

  • Advantages and Disadvantages of QFP Packages

  • QFP Chip PCB Assembly

  • QFP vs. QFN: Difference Between QFP and QFN

  • Summary


QFP vs. QFN: QFN Package



QFN is an acronym for Quad Flat No-lead package. Its function is to link the IC's silicon die to the circuit board. A copper-lead frame with a matt tin coating surrounds the die, and bond wires connect the two parts. However, some manufacturers use flip-chip technology to connect the two sections because it offers better electrical performance.



A QFN package on an accelerometer

A QFN package on an accelerometer

Source: Flickr

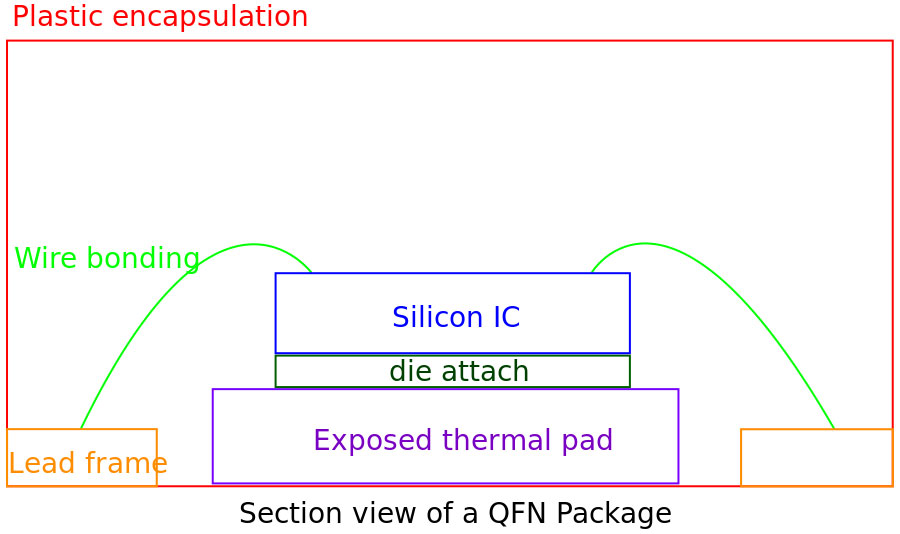

This silicon die sits on an epoxy material, which attaches to the exposed metalized pads. These pads provide electrical connections and ground paths to the PCB. QFN packages are usually tiny and provide moderate heat dissipation to the PCB.



QFN Variations



QFN packages are available in the following types.



Plastic-Molded



As one of the most affordable QFN packages, this variation doesn’t have a lid and consists of only two sections.

  • Plastic composite compound

  • Copper-lead frame

But this type's applications only lie between 2-3 GHz.



The Air-Cavity QFN



These QFNs contain an air enclosure in the package and have three sections.

  • Copper-lead frame

  • Plastic/ceramic Lead

  • A plastic-molded body that you open with/without a seal

The air-cavity type is more expensive than other QFNs due to its construction. However, it has a wider application range that lies between 20-25 GHz.



Wettable Flanks QFN



These flanks have an elevated base to show the solder wetting. Therefore, you can inspect the pads to check if they sit correctly on the circuit board.



The Punch-Type QFN



Such QFNs have a single-mold cavity setup containing the molded package, with a punch tool splitting this cavity, hence the name. But the QFN is also available as a single package molded up via this method.



The Sawn Type QFN



This package utilizes the mold array process for molding. The process entails cutting one large box into tiny chunks, then sorting them.



Flip Chip QFN



Flip-chip QFNs use flip-chip technology to connect the copper-lead frame to the silicon die. This technology creates a shorter electrical connection between the two, making it ideal for electrical applications.



Wire Bond QFN



As the name suggests, the QFN uses wires to connect the chip's terminal to external components. Wire bonding directly connects to an integrated circuit, PCB track, or semiconductor.



A QFN side view

A QFN side view

Source: Wikimedia Commons



Advantages of QFN Packages



  • Lightweight and easy to handle

  • Thin profile (less than 1mm) with a tiny footprint

  • Short bond wires for connecting the die to the frame

  • Low lead inductance

  • No lead coplanarity problem

  • Incredible heat dissipation

  • Requires regular surface-mount equipment for circuit board assembly

  • Affordable



QFN Issues



QFN packages are pretty good, but they have a few issues.



Manufacturing Issues



QFN packages perform exceptionally well in low-mix, high-volume products. However, they encounter challenges in minimizing fault rates during placement and reflowing in high-mix, low-volume scenarios. This problem primarily affects the board and stencil design.

Therefore, you should use accurate stencil designs and thicknesses and strictly follow manufacturer guidelines. Check the aperture-pad ratio, soldering thickness, etc. On the other hand, the bond pad design should lie at a 0.2-0.3 range from the package base.



Soldering Issues



Because QFN packages feature slim pad-to-pad pitches, they create a potential solder bridging problem. Also, you might encounter issues desoldering the packages because they don't have Lead.

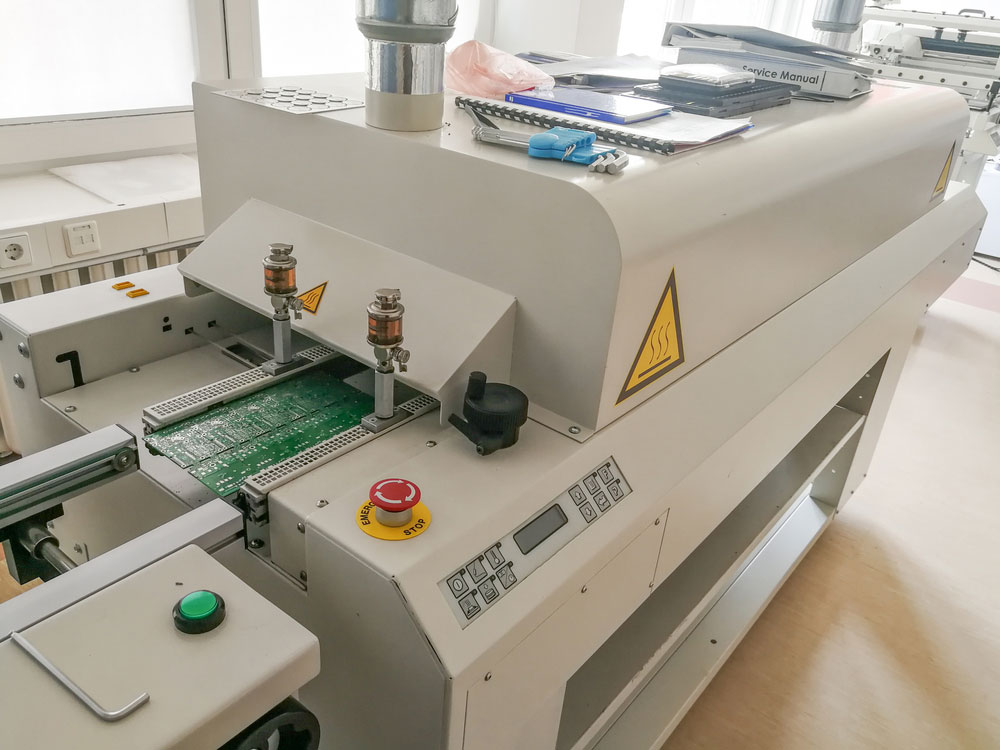

A PCB heading into a reflow oven after assembly

A PCB heading into a reflow oven after assembly



Compatibility Issues



The lack of Lead can change the dimensions of the package or board they sit on. Therefore, they become weaker after experiencing nominal OEM or CM practices.

Besides that, they might experience board flexure due to the high stress experienced after in-circuit testing, board attachment, etc. This issue occurs because the packages lack long, flexible copper leads.



QFN Footprint Design



Always refer to the QFN datasheet when designing its footprint because it shows the outline's drawing. Also, observe the following factors.

  • The EP/ ground pad should have enough vias for heat dissipation

  • Pin 1/ orientation marking

  • Ensure the solder bridge is 4mil or higher

  • Check the solder paste and solder mask layers (observe openings recommendation by the manufacturer)



QFN Assembly

Assembling a QFN component on a circuit board involves the following steps.



Solder-Paste Printing



Solder paste printing entails spreading the solder paste uniformly on the PCB, a necessary step before component placement.



Component Placement



Next, embed the QFN integrated circuit on the PCB as per the board layout design. Use a precise pick-and-place tool for maximum accuracy due to the high interconnection density.

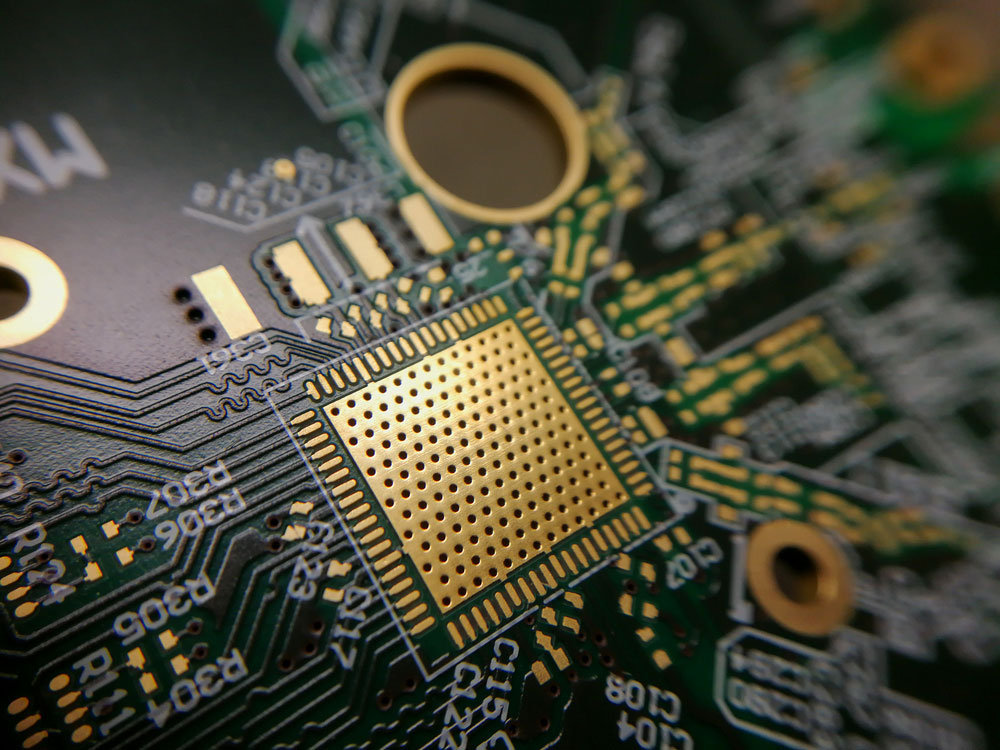

Footprint of a QFN footprint on a PCB

The footprint of a QFN footprint on a PCB



Pre-Reflow Inspection



This step is crucial because you must ensure the PCB and placed components are ready for soldering. Also, check for surface board contaminants that might affect the soldering process.



Reflow Soldering



If everything looks good, place the PCB in the reflow oven.

Post Reflow Inspection

Check the soldering quality. Although not expected, there might be some issues.



Rework an Assembled Component



Should a QFN soldering defect, you must rework that component by plucking and placing it again. Do this procedure using the following steps.

  • Do a pre-bake procedure to avoid moisture-related failures

  • If you must desolder, keep your component's temperature profile in mind

  • Remove the part mechanically from the PCB after desoldering

  • Clean the circuit board pads and remove the residue

  • Follow the 5-step assembly procedure above to attach the component back to the PCB



QFN Soldering



Soldering is the fourth step in the QFN assembly process. When the PCB enters the reflow oven, some parts heat faster than others. This uneven heating occurs due to temperature variation in the reflow oven.

Parts that heat faster become lighter, while those that heat up slower are large copper sections or heavy components,

Therefore, you can monitor the QFN package's surface temperature during the soldering process. The goal is to ensure the package's peak body temperature does not surpass preset values.



QFP vs. QFN: QFP Packages



QFP is an acronym for Quad Flat Package. Like QFN, QFP is a surface-mount IC package, but this one features "gull-wing" leads/pins extending from all four edges.

Such packages are standard in large-scale and very large-scale integrated circuits. With the pin count being over 100, this integrated circuit package is very efficient and reliable. Therefore, it is ideal for packaging central processing units.

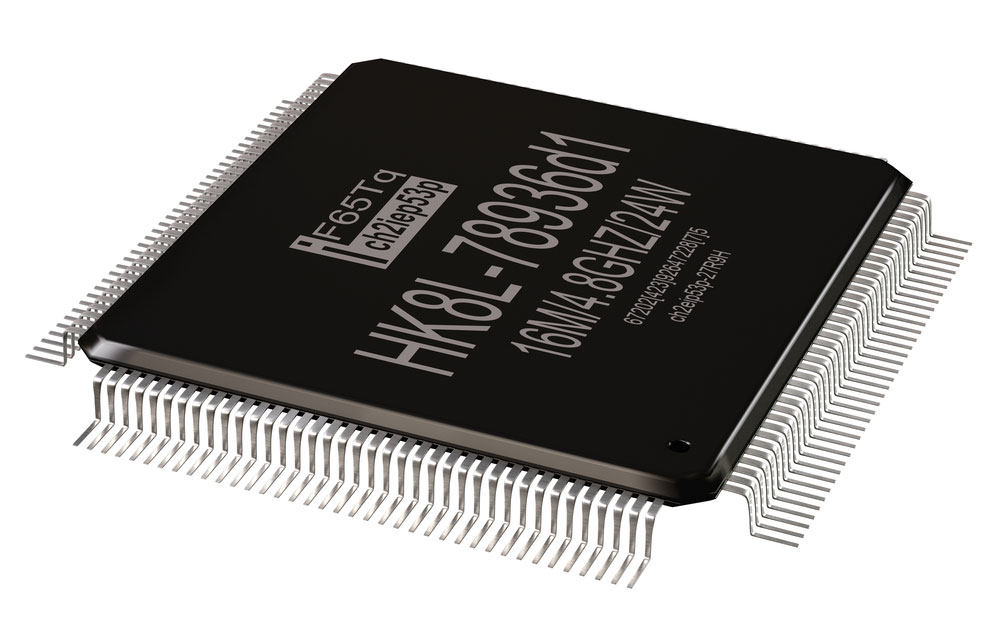

An IC with a QFP package

An IC with a QFP package



Additionally, QFPs have tiny parasitic parameters, making them ideal for high-frequency applications.

This package can be in a square or rectangular shape. The former has an equal pin count on all sides, while the latter has a different pin count on each side.

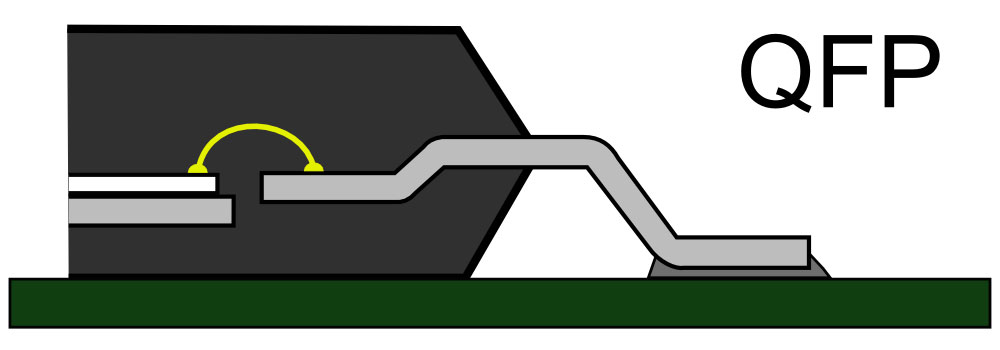

A QFP package side view. Note the gull-wing lead.

A QFP package side view. Note the gull-wing lead.

Source: Wikimedia Commons



QFP Package Variations

Besides the shape, QFP packages have the following variations.

Bumper Quad Flat Pack (BQFP)

BWFP packages feature shield extensions on all corners to protect the leads from mechanical damage pre-soldering. These lead pins can get easily bent or damaged, while their fine pitch makes them almost impossible to repair if turned.

Bumper Quad Flat Pack Having Heat Spreaders

This variant is similar to BQFP but adds heat spreaders to enhance efficiency by allowing quick dissipation at higher power levels.

Ceramic Quad Flat Packages

This package utilizes ceramic as the base material, which improves quality and efficiency.



Fine Pitched Quad Flat Packages



As the name suggests, these QFP packages feature a fine pitch.



Heat-Sinked Quad Flat Pack



Integrated circuits with high pin counts can dissipate high heat levels. This heat needs efficient dissipation for optimal IC performance. You can create a heat sink for such packages by replacing some pins (usually on the opposing side's central part) with thicker ones. Next, solder these pins to a broader pad with a wide copper area on the PCB. This setup should dissipate heat much faster.



Low Profile Quad Flat Packages



These packages are unique due to their slim body thickness (1.4mm). They have the following specs based on QFP and MQFP metrics.

  • 2mm lead-frame footprint

  • 32 - 256 lead count range

  • Varying body size from 5x5mm to 28x28mm

  • Four varying lead pitches (0.3, 0.4, 0.5, and 0.65mm)



QFP Chip PCB Assembly



Assembling a QFP chip on a PCB requires the following steps.



Stencil Printing (Solder Paste)



This step involves applying solder paste via a stencil. Excessive solder paste can cause bridging, while inadequate application reduces spreading. Therefore, consider the stencil's thickness and aperture for accurate sizing.

Also, you should use a suitable solder paste, such as type 4. Lead-free solder pastes usually contain a tin-silver-copper alloy, and these particles must fit in the stencil apertures when printing.



Component Placement



Next is component placement. QFP components self-align due to the liquid solder's surface tension, resulting in reliable solder joints. But you still have to position the component precisely, and you can achieve this using a P&P machine.


Pre-Reflow Inspection
